Products Range >> Hydraulic Copying Attachment

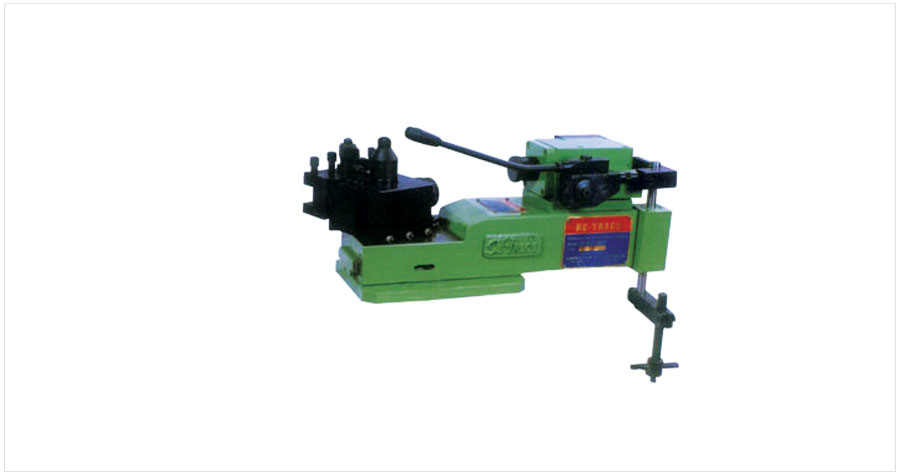

Hydraulic Copying Attachment

Hydraulic Copying Attachment

Technical Specifications
Machine Particulars No. of Size HT- 1
5060		 HT- 2
7090		 HT- 3
11040
Strike of Tracing Slide In mm 60 90 140
Minimum Centre Height from Top of Cross Slide In mm 135 140 150
Max. Dia of Round Master In mm 90 150 220
Max. Length of Master In mm 900 900 1200
Hydraulic Working Pressure In Kg cm² 12 15 15
Pump Output In Lt / Min. 6 8 10
Power Pack In H.P. 1 1 1.5
